MOTOROLA DIMETRA X CORE SYSTEM



---



For government organisations, public safety agencies and large enterprises, mobile broadband is on the way. And while you don’t know when that change is coming—you can be ready for it with DIMETRA X Core. It’s designed to make the most of your existing DIMETRA network today, while preparing you for the additional capabilities offered by mobile broadband tomorrow.

With a software-defined core, enhanced cyber security and smart interfaces, DIMETRA X Core is built for long-term performance, giving you the mission-critical communications you need for the next 15 years or more. By replacing your existing core network with DIMETRA X Core, you’ll be making a cost-effective investment to enhance and prolong the service life of your DIMETRA radio access network.

As technology evolves, so will your DIMETRA system. It features a fully scalable architecture that allows system design and expansion from one site to 5000 or more. And as your needs change, you can easily add new users or capabilities by enabling software licenses.

DIMETRA X Core consumes less energy and lowers the long-term total cost of ownership for your organisation. Not to mention offering scalable pricing, so you pay only for the capacity and capabilities you need. Based on proven DIMETRA TETRA technology and open standards, DIMETRA X Core is a secure, smart investment for your organisation’s future.

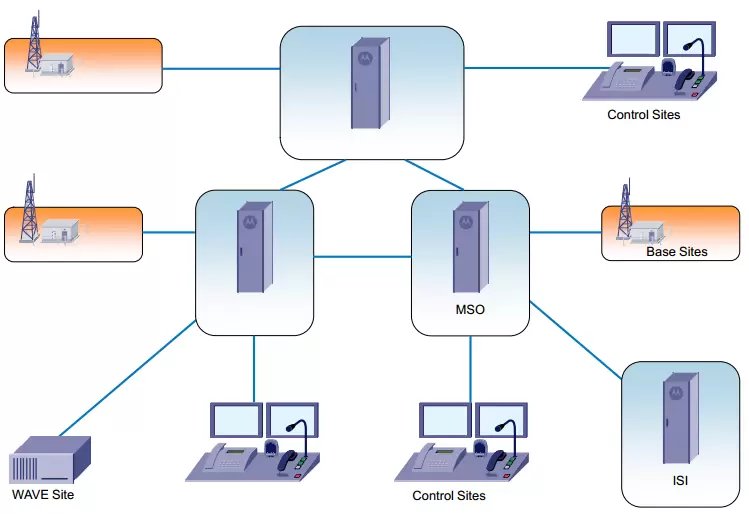

Figure 1 – DIMETRA X Core System Showing Physical Sites





The main features of DIMETRA X Core system:


---



• TETRA voice and supplementary services* including group and individual calls
• Compatible with Motorola MTS range of TETRA base stations and MCC7500 dispatch consoles
• Short and packet data services
• Telephony interconnect gateway – choice of E1 or IP enabling connection to analogue PABX or an external VoIP network via IP-PABX; SIP protocol support
• E1 or Ethernet site links
• Interface to customer enterprise network
• Inter-System Interface (ISI)
• Remote service access
• Core redundancy with geographical redundancy option
• Voice recording option
• Interface support to Intelligent Middleware
• Interface support to Wave 5000 and WAVE 7000
• Security Options:
  • Authentication
  • Air Interface Encryption (including Class 3G)
  • End-to-End Encryption
• Cyber security options, including:
  • Anti virus
  • OS patching
  • Site link encryption
  • Perimeter protection
  • Two factor authentication
  • OS hardening

Advantages of DIMETRA X Core system:

---

Future Ready
With its modern architecture, DIMETRA X Core is built for the future today. It's advanced capabilities will allow you to move easily to mobile broadband when the time is right, while protecting your investment in the radio area network. DIMETRA X Core features a software-defined core and smart interfaces, so you can expect long-term performance for the next 15 years or more. Regular DIMETRA software updates will keep your network operating at the peak of its performance and give you access to new capabilities as they’re developed. And you’ll be prepared for WAVETM push-to-talk solutions and intelligent middleware interfaces that extend voice communications and applications when TETRA and mobile broadband technologies converg

Fully Scalable
Whether you’re operating an airport system, a regional utility or a national public safety network, you’ll enjoy the same, high levels of operational resilience, reliability, security and comprehensive feature set—giving you all the coverage, capacity, and capability you need. DIMETRA X Core features a fully scalable architecture that enables system design and expansion from one site to 5000 or more. At the same time, you can share a single system with other organisations to keep costs down. Through agency partitioning, you have the ability to share the network, while still maintaining safe, secure, and private communications.
In addition, multiple TETRA networks can be connected for mission-critical push-to-talk communications across borders. The Inter System Interface makes true collaboration possible. With international cooperation more important than ever, neighboring countries or regions can now communicate seamlessly. Whether handling border control or responding to a natural disaster, working together has never been easier.

Mission critical
Count on DIMETRA X Core for mission-critical communications. Whether it’s group and individual push-to-talk services, individual and group messaging for enhanced collaboration, dynamic team management for coordinated incident response, location tracking, or voice recording, you have the advanced services you need.
With multiple levels of resiliency and redundancy, including the ability to support geographic redundancy, you ensure performance in case of civil emergencies or natural disasters. Because for your organisation, communications failure is not an option.

Capabilities
Having a flexible communications network is a must for any government organisation, public safety agency or large enterprise. With DIMETRA X Core’s software-defined core you can easily add new users or new capabilities. Simply enable software licenses to meet the needs of a temporary, large-scale regional event—or to permanently address the needs of your growing organisation.
Restricted budgets are a fact of life. Through its consolidated, virtualized core, DIMETRA X Core uses less energy and simplifies system management while paving the way for smoother software upgrades in the future. And with scalable pricing you pay only for the capabilities and capacity you need. All of which lowers operating costs and the total cost of ownership.

Enhanced protection
Cyber security threats are a reality of the world we live in. Attackers today are more pervasive, persistent and proficient at evading security and disrupting operations. With the safety of your personnel at risk, trust Motorola Solutions, the leader in mission-critical communications, to help you identify and manage risks in this constantly changing environment. DIMETRA X Core helps you respond to these challenges, so you’re better protected today and prepared for continuous improvements in security for years to come.

Proven reliability
When it comes to mission-critical communications, you need DIMETRA’s proven TETRA technology. With over 1000 DIMETRA systems deployed in more than 100 countries by Motorola Solutions, you know you’re making a smart investment for the future. And since TETRA is a proven, mature and highly-stable ETSI open standard technology, you can count on its compatibility and interoperability


The components of DIMETRA X Core system:

---

Mobile Switching Office (MSO):
A Mobile Switching Office is a physical location that contains all the components necessary for controlling calls within a zone and for communicating with other zones to manage interzone calls (calls that go between zones). In addition, the MSOs provide the hardware and software components that are used for network management and system config.

Base Sites:
A Base Station serves as the Radio Frequency (RF) interface between the system infrastructure and the radios. Base Stations in a trunked system have three primary interfaces:

• A receiver to pick up the RF signal from the radios
• A transmitter to send RF signals to the radios
• A wireline interface to send audio and control traffic to the system infrastructure

There are 5 base station types: MTS1, MTS2, MTS LiTE, MTS4, MTS 4L

Control Site:
Control sites are the locations where the users of the system (dispatchers and network managers) access the dispatch consoles and/or the network management terminals (NMTs). A control site can include a variety of equipment to serve its particular purpose in the system. It may have just dispatch consoles or NMTs or it may have both depending on the requirements. It may also contain call logging equipment or an Integrated Command and Control System (ICCS) Gateway.

Intersystem Interface (ISI):
DIMETRA X Core supports an Intersystem Interface (ISI) to provide service between users
on the DIMETRA System and another TETRA System (Foreign SwMI). The Foreign SwMI
can be provided by another supplier or it can be another DIMETRA X Core system with a
different Mobile Network Identifier.

WAVE Site:
DIMETRA X Core support to connect WAVE 5000 or WAVE 7000 provide the coverage to user who is not in the  để cung cấp vùng phủ tới người dùng bên ngoài hệ thống DIMETRA X Core hoặc người dùng không có truy cập tới thiết bị trên hệ thống DIMETRA.


Above is a brief introduction of  the Dimetra X Core system, for more detail information please contact us!
