MOTOROLA DIMETRA SCALABLE SYSTEM

MOTOROLA DIMETRA IP SCALABLE

Motorola Solutions' DIMETRA™ IP switches are the power behind our industry leading TETRA solutions.

DIMETRA IP equipment, integrated with customer specific applications, combined with professionally managed services provide the high performance, dependable, secure and integrated wireless communications solutions that are essential to the effectiveness of professional mobile communications.

Leveraging off Motorola Solutions' proven technological expertise and market leadership in integrated solutions for demanding mission-critical environments, the truly scalable DIMETRA IP portfolio delivers an array of voice and data capabilities and dependability when you need it most.

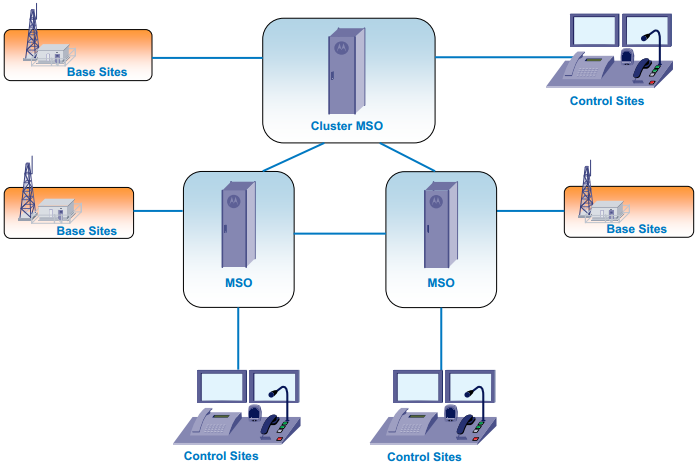

Figure 1 – DIMETRA IP Scalable System Overview

Advantages of DIMETRA IP Scable system:

Flexible Scalable:

Motorola Solutions' DIMETRA IP system accommodates your changing requirements. Scalable in size and features it meets customer requirements from a single to multi-sites and even onto a national scale. Functionality is also scalable, delivering voice services and add on services such as short data, packet data, telephone interconnect, as well as a comprehensive security suite.

Based on a flat mesh IP based architecture our mission critical systems delivers extremely fast, consistent group call set up times, even across multiple wide area zones, allowing consistently high speed call set up connections.


Integrated:

DIMETRA systems, with end-to-end IP configuration, provide the most comprehensive packet data service, including Multi-slot packet data (MSPD) in the TETRA market, keeping you connected and maximising the utilisation of network resources.

The DIMETRA portfolio supports a wide range of well-documented licensed Application Programming Interfaces (APIs), enabling organisations to connect seamlessly to other telecommunications networks and services, or integrate their operational I.T. applications.


Reliable:

DIMETRA IP systems' key platform components are fault tolerant, ensuring that the network continues to handle and deliver communications under adverse conditions.

DIMETRA IP solutions are designed to deliver class leading performance and reliability, with support for redundancy throughout, from site links, base radio and site controller redundancy - to fully redundant switch and geographic redundancy.


Secure:

Motorola Solutions has been successfully implementing encrypted communications for well over 30 years. DIMETRA IP systems encompass a full range of TETRA compliant encryption solutions to suit your budgets and operational requirements. Authentication and Air Interface Encryption are also offered in DIMETRA mission critical systems.

Virtual Private Networks (VPNs) allow organisations to share a network and still enjoy the security and control they require, without the expense of a dedicated infrastructure. Networks sharing enables organisations to co-ordinate operations through interoperable equipment and common talk groups.



DIMETRA IP Scalable system components:

Mobile Switching Office (MSO):

A Mobile Switching Office is a physical location that contains all the components necessary for controlling calls within a zone and for communicating with other zones to manage interzone calls (calls that go between zones). In addition, the MSOs provide the hardware and software components that are used for network management and system config.


Base Sites:

A Base Station serves as the Radio Frequency (RF) interface between the system infrastructure and the radios. Base Stations in a trunked system have three primary interfaces:

• A receiver to pick up the RF signal from the radios
• A transmitter to send RF signals to the radios
• A wireline interface (E1, X.21, Ethernet IP)  to send audio and control traffic to the system infrastructure
• There are 5 base station types: MTS1, MTS2, MTS LiTE, MTS4, MTS 4L

Control Site:

Control sites are the locations where the users of the system (dispatchers and network managers) access the dispatch consoles and/or the network management terminals (NMTs). A control site can include a variety of equipment to serve its particular purpose in the system. It may have just dispatch consoles or NMTs or it may have both depending on the requirements. It may also contain call logging equipment or an Integrated Command and Control System (ICCS) Gateway


Above is a brief introduction of  the Dimetra IP Scalable system, for more detail information please contact us!
