MOTOROLA DIMETRA EXPRESS SYSTEM

• TETRA Voice Services, including Group, Individual and System Wide Calls

• Packet Data1 and Multi Slot Packet Data 1 (MSPD)

• VoIP Telephony Interconnect

• Analogue Gateway

• Authentication

• Air Interface Encryption (AIE)

• Geographic Redundancy

• Dispatch Console  (API) ,Voice Logging API, Air Traffic Information Access API

• Web-Based Console Local Language Support

• Web-Based Network Management

• Web-Based Dispatch Console

• Remote service access (VPN)

• Expandable to additional sites with DIMETRA MTS1, MTS2 or MTS4 Base Stations using Ethernet IP network site links

• 2000+ subscribers

Advantage of DIMETRA Express system:


Fully integrated system

With the switch and base radios integrated in a one-box or modular system, DIMETRA Express is easy to setup and install. It features a small physical footprint, so it requires less space and power, and has fewer components. The result? You reduce total cost of ownership, and focus on your business instead of your communications system.

Simple, intuitive setup
TETRA System easy to set up, configure, and install, so you can get your teams going faster. In fact, you can now deploy the system in less than 15 minutes with a simple installer. Using a single IP address, you can quickly integrate DIMETRA Express into your existing network. And with bulk provisioning of subscribers, you can set up radio users in no time. What’s more, DIMETRA Express is ready for the future. All it takes is a single click to upgrade the system software.
Full TETRA capability

Organisations today demand more than just talk. They require many types of voice and data communications to get the job done. That’s why DIMETRA Express TETRA System enables voice, short data, packet data and multi slot packet data, and telephony services. You get loud and clear voice communications for safe day-to-day operations. Text messaging for times when your team needs quick information. Enhanced operational scope and efficiency with packet data. And the ability to make VoIP telephone calls outside the network, such as calls to other locations or organisations, senior management, or emergency services.

Web-based applications
System management is easy using web-based tools, including a system health monitor, radio control manager and simple dispatch application. All you need is a PC or tablet running Android™ or Windows® and a Google Chrome browser. Then enjoy support for web-based text messaging, which allows teams to send short or pre-set messages that boost efficiency in the field.
Expandable, flexible architecture

DIMETRA Express is designed to expand as your needs do. Easily add base radios to a site and get additional channels for more capacity. Or add another site to broaden your coverage area. You can even deploy the system as a temporary solution—whether for an event or in an emergency—changing frequencies and adding new subscribers so radios stay connected and working.

Robust, reliable communications
Robust and reliable, you can depend on DIMETRA communications to be there for your team when they’re needed the most. As a world leader in TETRA, we offer a comprehensive portfolio of solutions that are integrated and tested together - from switches and base stations to radios and accessories. Our aim is to provide you with peace of mind through world-class product quality and support. We also provide a Security Update Service to keep your system safe from current cyber security threats.

DIMETRA Express system component:

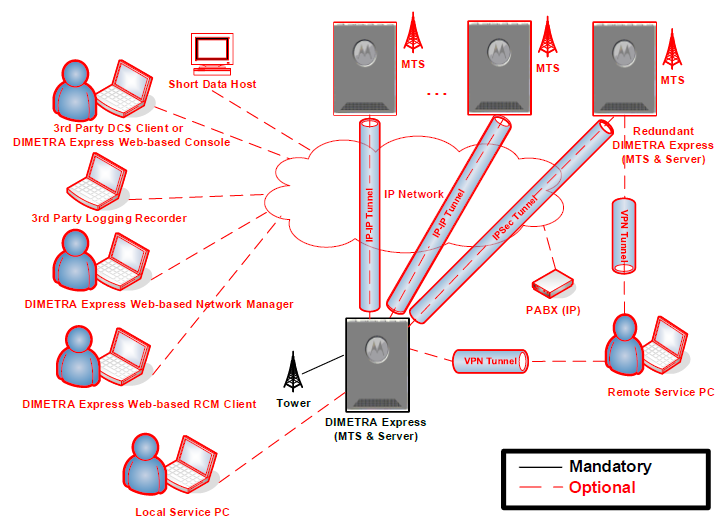

Express System MTS2/4 based, include:
Express Server – a single server hosting all the call processing, configuration, fault management, IP telephony and Short Data Service, …
Primary Site – a base station that hosts the Express Server inside the Express Subsystem Cabinet (MTS2 or MTS4 cabinet). For MTS1 configuration the Express Server is located outside of the MTS1
Secondary Site – in case of geographical redundancy a base station that hosts the Express Server or a location with a Standalone Express Server

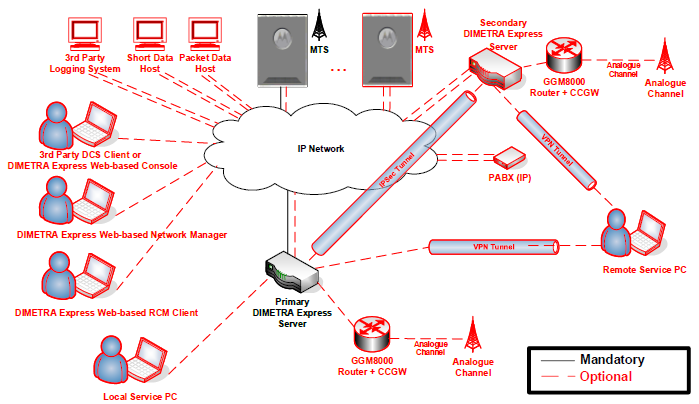

Express System MTS1 based, include:
Express Server - a single server hosting the call processing, configuration, fault management, IP telephony and Short Data Service, …
Primary RF Site – Opposite to the MTS2/4 based solution the MTS1 base station does NOT host the Express Server. The Express Server is installed separately.
Secondary RF Site – in case of geographical redundancy similarly to the primary RF Site a base station that hosts the Express Server

Express Standalone Server:
The Standalone Express server is mainly used to allow server redundancy configurations
which are hosted in or next to an existing MTS1 based Express system on the same location
or in Data Centres an another location. It contains the Express Server and an external power
supply. In case of geographical redundancy two Standalone Express Servers are required, a
combination of Standalone Express Server as Primary Site and an RF Site with Express
Server is not certified.

Base Transceiver Station (BTS):
BTSs can be supported on a DIMETRA Express system and are connected using single or dual Ethernet links to the DIMETRA Express primary MTS or Standalone Express Server. Base transceiver station BTS include: MTS1, MTS2, MTS4.

Above is a brief introduction of  the DIMETRA Expres system, for more detail information please contact us!
