THERMAL CAMERA SOLUTION

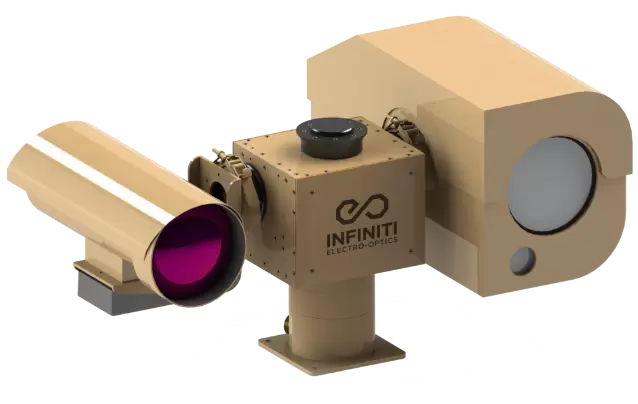

The Vega is a revolutionary multi sensor PTZ camera boasting a long-range visible day/night camera long-range 40+km thermal infrared zoom, and optional ZLID NIR illumination with LRF. This multi-sensor payload enables the Vega to provide high resolution imaging in virtually any environment from heavy fog to complete darkness. Designed for weapons systems pointing and accuracy, it meets and exceeds MIL-STD-810F military ratings for shock, vibration, temperature and dust/water ingression. This makes it the ultimate long-range camera system for 24/7 situational awareness and long-range recognition and identification of targets.

THERMAL CAMERA SOLUTION

Outstanding features of The Vega Series:

135X zoom range with motorized double for a 27°–0.2° HFOV
Tri-Sensor payload: HD visible, ZLID illumination & thermal
Day/Night 1080p HD IP ONVIF 1/1.8" CMOS sensor
15.5-2075mm Zoom Lens (with motorized 2x double)
Auto focus & motorized fog/parasitic light filter
Color: 0.06 Lux; B&W: 0.005 Lux (0 Lux with IR ZLID)
ZLID for an optional 1–5 km of IR illumination that syncs with zoom
22X 38–855mm autofocus germanium thermal lens (14°–0.64° HFOV)
Cooled thermal sensor provides extremely sharp thermal imagery
Up to 27km of human detection and 43km of vehicle detection

System overview:

Switch is used to aggregate all the Ethernet interfaces for all long-range cameras, workstations and VMS (Video Management System)

Joystick controls all camera functions such as pan/tilt/zoom, etc.

Work Station is installed management software, recording and replaying, viewing live video stream and monitoring system.

The Vega Series camera is an optical instrument to capture still images or to record moving images, provides full HD sharp and true images.

The above is a typical solution of the thermal camera system, we – NT can customize a lot of configurations according to your need and budget.
If you are interested in solutions, please contact us for detailed information!
