LONG RANGE CAMERA SOLUTION

Date 20-08-2019 Views 35
LONG RANGE CAMERA SOLUTION

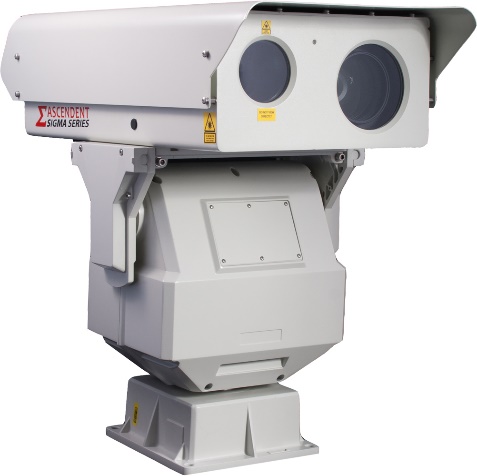

Sigma Series PTZ provides monitoring capabilities in factories, military areas ... with large and wide areas. It is a long-range dedicated camera that can detect objects clearly at distances of up to 15 km, but it also provides wide-field visibility in short visibility.


LONG RANGE CAMERA SOLUTION





Sigma Series PTZ provides monitoring capabilities in factories, military areas ... with large and wide areas. It is a long-range dedicated camera that can detect objects clearly at distances of up to 15 km, but it also provides wide-field visibility in short visibility.


Outstanding features of Sigma Series PTZ:





  • High of Longevity and Reliability - The Sigma Series PTZ are comprised of high quality precision engineered components for unparalleled performance and reliability. All these components are integrated into a rugged IP 66 extruded aluminum or IP68 stainless steel, explosion proof housing for installation in the most hazardous environments and the harshest climates world-wide.



  • Industry Leading Performance - Ascendent's Active IR module combines laser diode technology, quality precision optics and sophisticated electronics. This creates long
    range active IR illumination greatly exceeding both the performance and distance of traditional IR LED illumination.



  • The camera equipped 32 – 2050 mm 65xHD continuous zoom lens, 12° – 0.15° FOV, auto focus to allow detect objects clearly at distances of up to 15 km.



  • In the dark conditions, the advanced ZLID (Zoom Laser IR Diode) technology uses a laser focusing on vision, allowing detection of targets up to 5 km away. While conventional technologies are not able to see in the night beyond the 300m range.

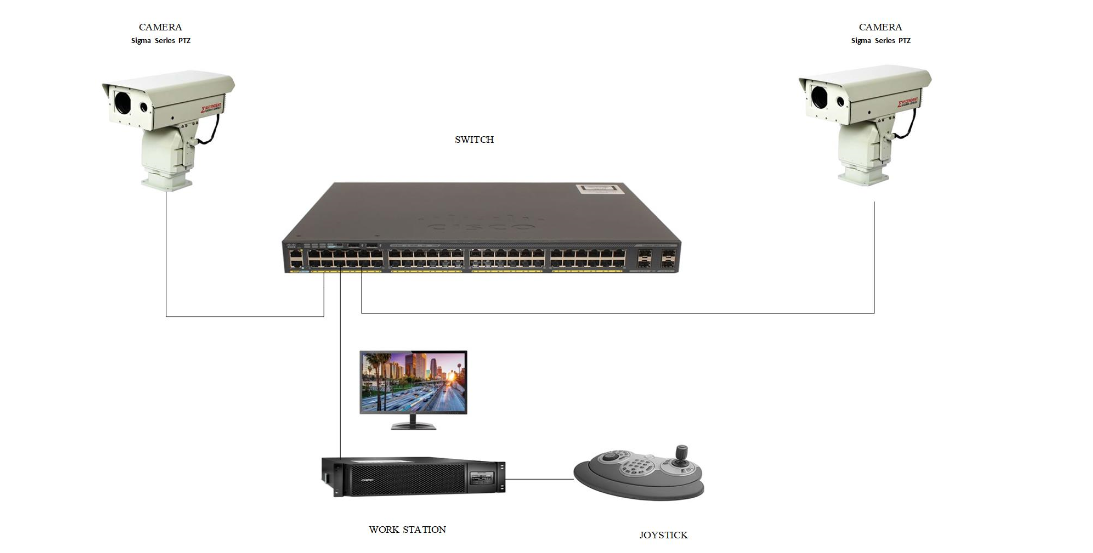

System overview:






Switch:
is used to aggregate all the Ethernet interfaces for all long-range cameras, workstations and VMS (Video Management System)

Joystick: controls all camera functions such as pan/tilt/zoom, etc.

Work Station:  is installed management software, recording and replaying, viewing live video stream and monitoring system.

The Sigma Series PTZ:  is an optical instrument to capture still images or to record moving images, provides full HD sharp and true images.


The above is a typical solution of the thermal camera system, we – NT can customize a lot of configurations according to your need and budget.
If you are interested in solutions, please contact us for detailed information!
